A³ Core Configuration

A³ Core is one Debian package, a3-core. In order:

The Debian package: what it is, how to install, what it needs.
What the installation does: the install script, step by step.
The services: every systemd unit.
The files: every file, and whether to edit it.

The usual route is the a3-system installer (role Core).

Part	What it is
OS	Debian testing, realtime kernel

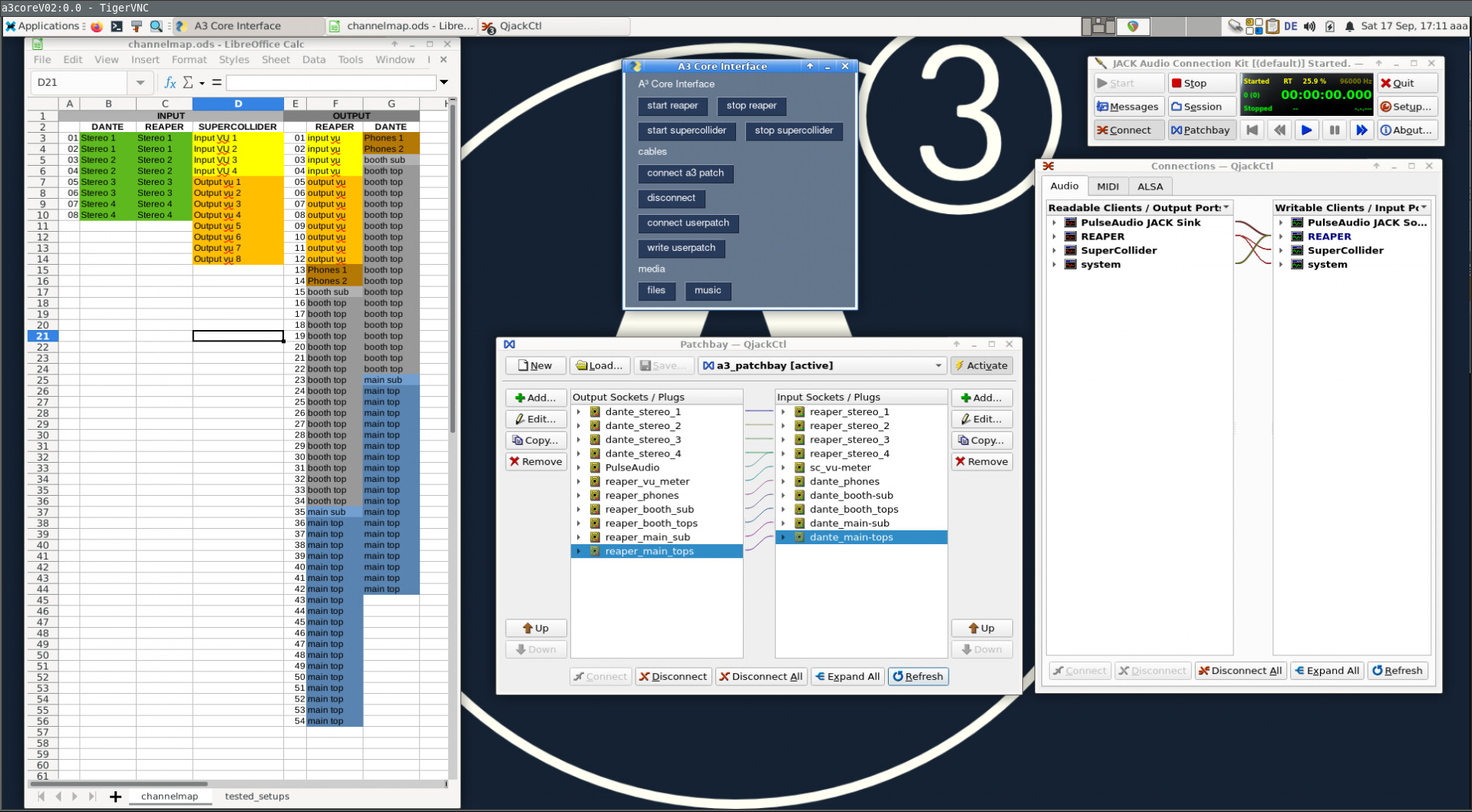

Window manager	i3, named workspaces (The screen)

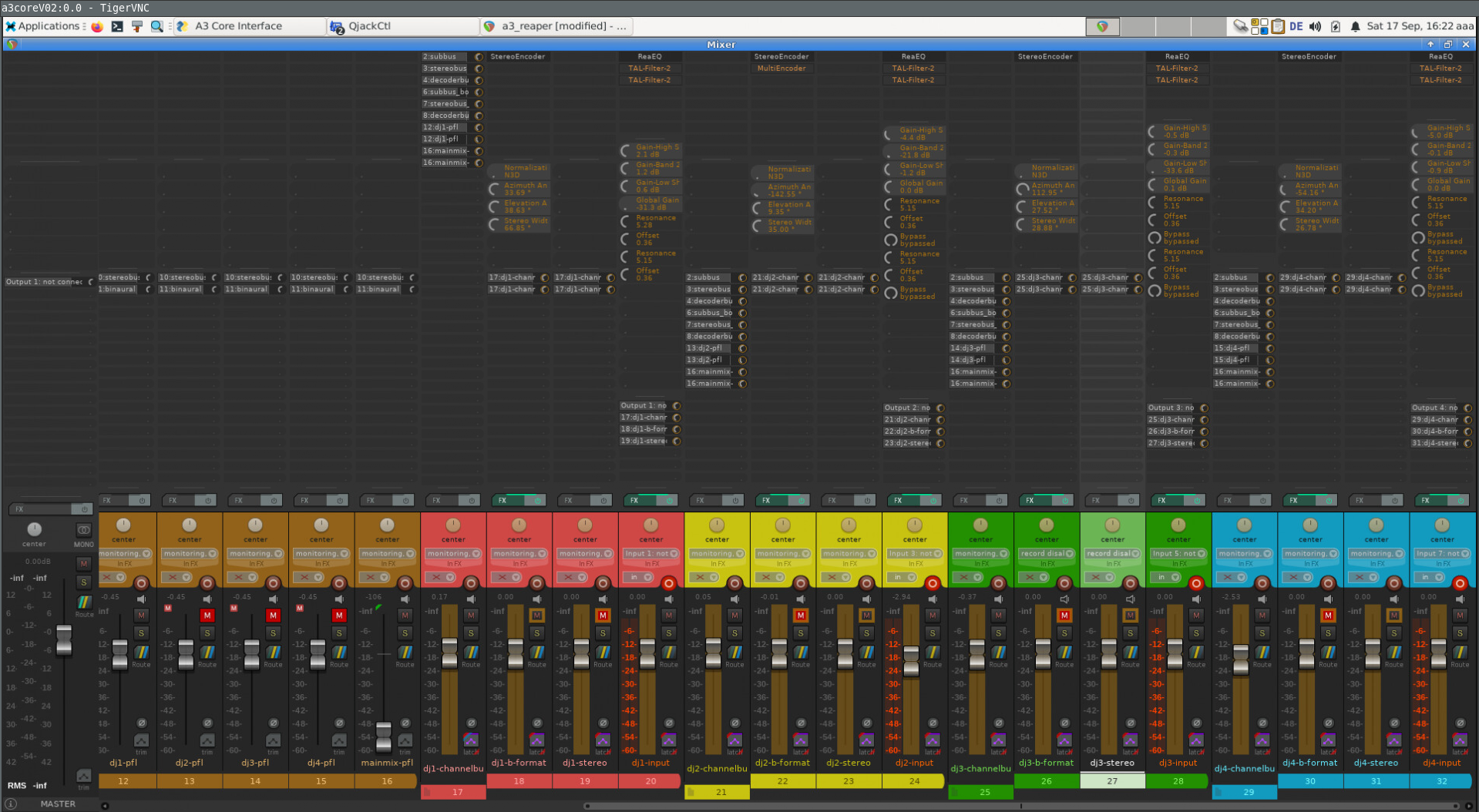

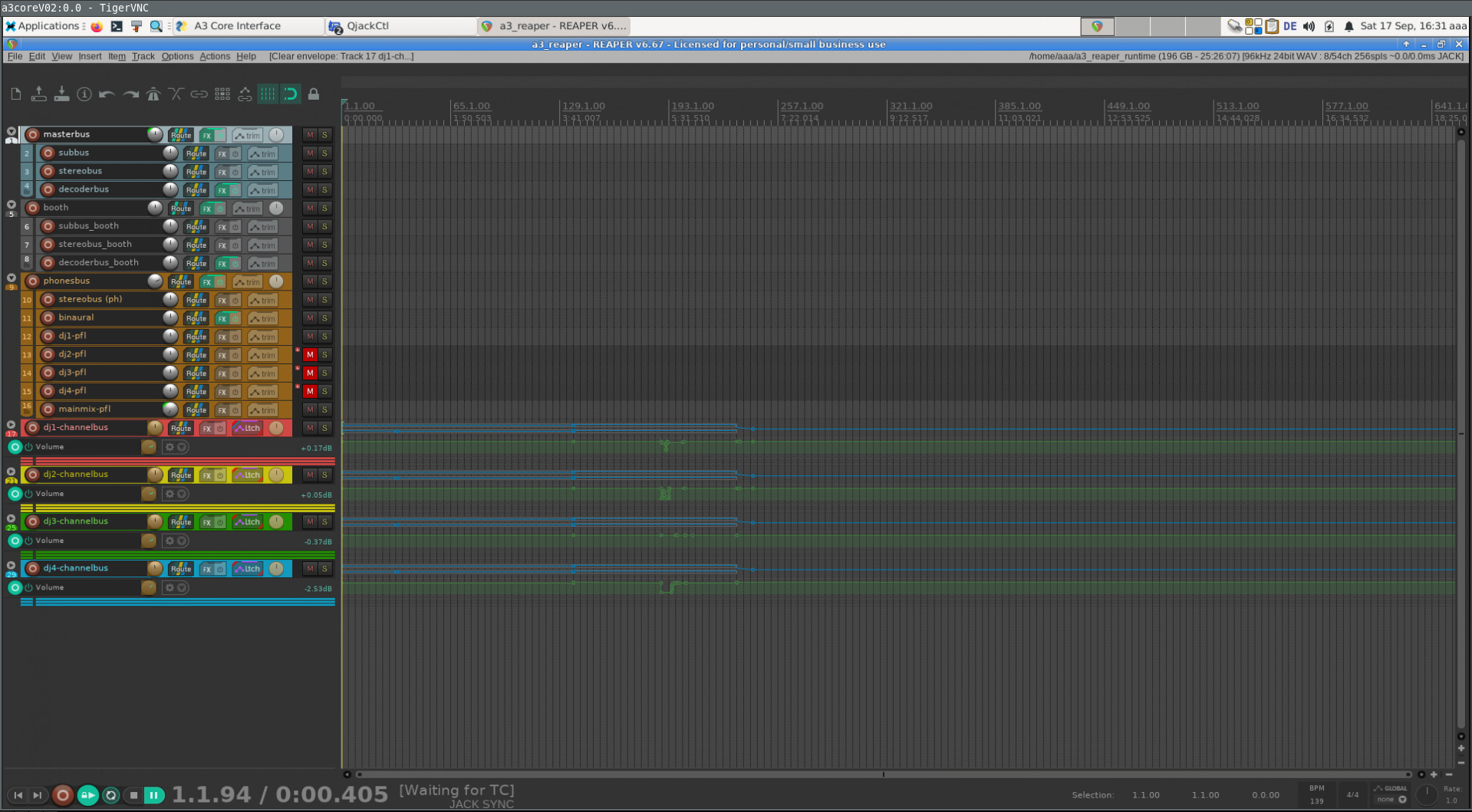

Audio	PipeWire (with JACK compatibility), REAPER, IEM plug-in suite
VU metering	the beat-analyzer (VU map)
OSC router	`~/.local/bin/a3-core.py`, a `systemd --user` service

Note

No addresses or ports here. They are in a3-osc.json (Where addresses and ports live); this page names listeners (core.osc, motion.energy, …), the file says where they are.

1. The Debian package

Built from a3-core, whose tree platform-config/debian-x86_64/a3-core/ mirrors the target paths (home/aaa/.local/bin/ → /home/aaa/.local/bin/). Built for one user, aaa.

Before you start

Blank Debian, no desktop, SSH server, user aaa.
sudo for aaa: as root apt install sudo wget, /usr/sbin/usermod -aG sudo aaa, log in again.

Installing

With the installer, or the newest package from a3-core’s main, as aaa:

wget -qO- "https://raw.githubusercontent.com/a3-audio/a3-core/main/platform-config/debian-x86_64/a3-core_install.sh" | sudo bash

a3-core_install.sh (as root):

Installs wget, gnupg, ca-certificates.
Installs the archive key as /usr/share/keyrings/a3-core-archive-keyring.gpg.
Adds /etc/apt/sources.list.d/a3-core.sources → https://a3-audio.github.io/a3-core/.
Switches to Debian testing: moves /etc/apt/sources.list to .bck, writes debian.sources (testing, testing-security, testing-updates; main, non-free-firmware), then apt full-upgrade -y, apt install -y a3-core, dpkg-reconfigure a3-core.

It runs non-interactively, so answer the questions afterwards:

sudo dpkg-reconfigure a3-core     # network, audio network, headless screen

Updates: sudo apt update && sudo apt install a3-core.

The version

A GitHub workflow rebuilds the archive on every push to main. Version: last v* tag plus commits since (v03.0 + 63 = 03.0+63), written into DEBIAN/control at build. The checked-in 1.0.0 is for hand builds and is older than anything published. python3 tools/package_version.py prints the next version.

What it depends on

Purpose	Packages
Realtime and audio	`linux-image-rt-amd64`, `pipewire`, `pipewire-jack`, `wireplumber`, `linuxptp`, `libjack-jackd2-dev` (headers only, for building), `jack-example-tools`, `qjackctl`, `libsamplerate0-dev`
3D audio	`iem-plugin-suite-vst3`
Screen	`lightdm`, `i3`, `i3status`, `xinit`, `xserver-xorg-video-dummy`, `xserver-xorg-video-amdgpu`, `x11vnc`, `x11-utils`, `x11-xserver-utils`, `libgtk2.0-0`, `pcmanfm`, `dex`, `unclutter-xfixes`, `maim`, `xclip`, `brightnessctl`
Python (Core)	`python3`, `python3-pip`, `python3-venv`, `python3-rtmidi`
Build tools	`build-essential`, `cmake`, `pkg-config`, `git`
Tools	`systemd`, `sudo`, `openssh-server`, `curl`, `wget`, `gpg`, `unzip`, `liblo-tools`, `net-tools`, `htop`, `vim`, `tree`

It recommends beat-analyzer, its own package; apt installs it along unless Recommends are switched off.

It conflicts with and removes: network-manager, wpasupplicant, modemmanager, dhcpcd-base, bluetooth, bluez, bluez-obexd, blueman, plymouth, cron, gnome-keyring and GNOME themes, gvfs*, i3lock.

2. What the installation does

DEBIAN/postinst runs on every install and upgrade, possibly mid-show, so most steps leave existing things alone.

1. The network (optional)

“Configure networking for a3-core?” (a3-core/configure-network, default no: nothing touched). With yes:

a3-core/install-default-network yes (preseed only, e.g. debconf-set-selections): interface, address, gateway, DNS and audio socket come from the truth’s network section (a3-osc-render network).
Otherwise it asks address/prefix, gateway, DNS, pre-filled (an answer on the pre-September-2026 network is reset to the default), and the interface (priority medium, hidden; default eno1).
Audio network (a3-core/audio-port, a3-core/audio-address): a second socket (e.g. enp5s0) for AES67 and PTP, on a subnet of its own. First asked pre-filled with the other wired socket; empty means one socket only. The address defaults to 192.168.9.10/24; there is no gateway and no DNS on it. There is no bridge: the A³ Mixer reaches the Core over the first network.

Written to /etc/systemd/network/:

Answer	Files
first socket	`10-a3.network`: address, gateway (`192.168.8.1`), DNS
audio socket	`20-a3-aes67.network`: address on `192.168.9.0/24`, no gateway, no DNS

Each file is replaced only when its content changes, and the old one is kept beside it as <name>.bak-<time>. An upgrade retires the former single a3.network and the bridge files (10-a3-bridge.netdev, 20-a3-bridge-ports.network, 30-a3-bridge-address.network) the same way. Without a second socket the AES67 sender and PTP are not enabled (a3-aes67). The interfaces’ lines in /etc/network/interfaces are commented out (# a3-core: networkd owns …). systemd-networkd is enabled, not started: the network changes at next boot.

Energy Efficient Ethernet is switched off on every wired port by a drop-in to the stock link file, /etc/systemd/network/99-default.link.d/a3-eee.conf (needs systemd 258 or newer): with EEE active the audio port dropped its link every minute or two, each time a three-second hole in the AES67 stream.

2. The headless screen

“Draw to a dummy screen?” (a3-core/headless-display, default no), for a Core used only over VNC.

Yes: ~/.local/share/a3-core/x11/10-headless.conf → /etc/X11/xorg.conf.d/. X draws a virtual 1920×1080; a plugged-in monitor stays black.
No: the shipped file, if present, is renamed .off; a hand-written one is left.

Answer no on a machine with a screen (e.g. running A³ Motion).

3. The Python environment

~/.venv with numpy, python-osc, mido (recipes/requirements.txt). Core runs on it.

4. The configuration, installed into `~/.config`

From ~/.local/share/a3-core/config/ (the tree), file by file:

missing → installed; same → left;
differs → replaced only if its part is ticked in a3-core/replace-config (only differing parts offered, all ticked; unattended takes all). Parts: reaper, i3, systemd, qjackctl, iem, other.
Replaced files are first copied to ~/.config/a3-replaced/<date_time>/; kept ones are named.

The install never restarts REAPER: after an upgrade, restart a3-main when you can, not mid-set. One file at a time, from an a3-core checkout:

python3 tools/config-status.py                  # list what differs
python3 tools/config-status.py --install PATH   # repo -> machine, one file

--install shows the diff and keeps the old file.

5. An ssh key (optional)

“Public ssh key allowed to log in as aaa” (a3-core/ssh-key, default empty). One public-key line is appended to ~/.ssh/authorized_keys, once; empty adds nothing, anything else is refused. The answer is forgotten afterwards, so an upgrade never puts back a removed key. The package ships no authorized_keys of its own.

6. Ownership and permissions

~/.local, ~/.config → aaa; directories in ~/.config 0755, files 0664.

7. Rendering the one truth: `a3-osc-render user`

As aaa, for programs that can’t read JSON:

~/.config/pipewire/pipewire-aes67.conf: the AES67 sender, from the truth’s audio socket (only with one).
the # >>> a3-osc … # <<< a3-osc block in ~/a3-system/beat-analyzer/build/.env (if present): targets, clock port, OSC words, Pro DJ Link ports. The rest of the file is yours; truth keys found outside the block are commented out.

A failure is reported. Core re-renders both at its own start; run it by hand only to refresh without a restart.

8. System services

Enables x11vnc.service and set_irq_prio.service (System units), and, with an audio socket, ptp4l@<socket>.service (the audio network).

9. User services and the REAPER installation

loginctl enable-linger aaa, systemctl --user daemon-reload, start a3-user-install.service (next section); linger off again. a3-main, a3-aes67 and a3-bar-per-workspace start at boot through the shipped default.target.wants links.

10. The boot loader

update-grub, for the kernel command line in /etc/default/grub (Under /etc). The postinst ends with:

use 'systemctl --user status a3-user-install.service' to check status
use 'dpkg-reconfigure a3-core' to configure network and the headless screen
Please Reboot or manage a3-core manually with 'systemctl --user start a3-main.service'

`a3-user-install.service`: REAPER, the plug-ins, the beat-analyzer

recipes/user_install.sh installs what Debian lacks. It runs on every upgrade, on a live rig, so each step runs only when its file is missing (refetching once emptied REAPER under a running REAPER).

Step	What it does	Skipped when
REAPER	current Linux x86_64 release into `~/.local/opt/REAPER`, link `~/.local/bin/reaper`	`~/.local/opt/REAPER/reaper` exists
plug-in paths	sets `vstpath` (`~/.local/vst/`, `/usr/lib/vst3/`) and `clap_path_linux-x86_64` (`~/.local/clap`, `/usr/lib/clap`) in `reaper.ini`, or writes a stub	never; only these two keys
TAL-Filter-2	`~/.local/vst/TAL-Filter-2.vst3`	it exists
Airwindows Consolidated	latest `DAWPlugin` Linux build → `~/.local/clap/airwindows.clap`	it exists
beat-analyzer	`./build.sh` in `~/a3-system/beat-analyzer`; `cp -n .env.example build/.env`	no checkout, or `build/beat-analyzer` exists

reaper.ini is the machine’s; the package sets only those two keys. IEM comes from Debian.
The beat-analyzer is built from the a3-system checkout (a submodule), not cloned; without it the step is skipped — clone a3-system (Installing the system) and start the service again. An existing build/.env is never overwritten.

Fetch REAPER and the plug-ins again (REAPER is stopped meanwhile):

A3_REINSTALL=1 bash ~/.local/share/a3-core/recipes/user_install.sh

Removing the package: `postrm`

apt purge a3-core removes /etc/systemd/network/a3.network, disables systemd-networkd, reloads systemd. Commented ifupdown lines, the headless X config and the home directory stay.
