Library and scripting

Sets and moods

The library: 50 shapes, 70 clips, 81 actions, 14 sets and the FPV Games set, along the arc of a night. Names start with a prefix, so related files sort together in FILES:

Kind	Prefix	Example
Sets	the phase	Peak
Clips	the phase	Peak Anthem
Actions	Move, Lift, Width, Speed, Dub, FX, Cue, Pilot	Lift Up
Shapes	the family	Flower Rose 5

Main arc: Warmup · Groove · Build · Peak · Drop · Break · Dub · Deep · Float · Closing. Mood phases beside it: Tribal (after Groove), Tension (after Tribal), Acid (after Break), Ambient (after Deep).

Any action may move and change the sound at once (3d, filter). Only A5 is the dedicated FX and A6 the Cue. Read an unfamiliar action before pressing it in front of a floor.

Mood quarters, named in the action tables (why: How a movement feels):

Quarter	Energy	Feel
Q1 euphoric	up	open, bright
Q2 driving	up	tense, dark
Q3 deep	down	dark, heavy
Q4 calm	down	open, soft

The fourteen sets

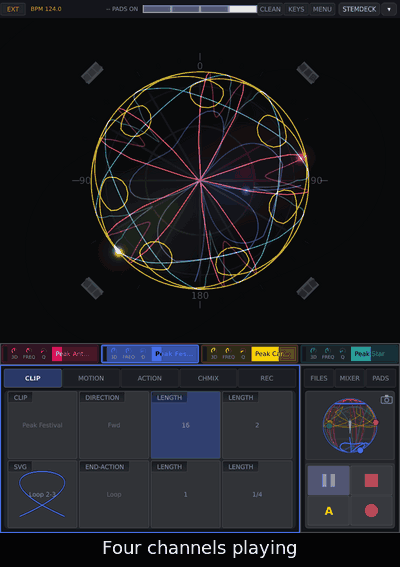

A set puts its phase’s first four clips on channels 1–4 (names without the phase: Peak channel 1 is Peak Anthem); the fifth is the spare. All four channels carry the same six actions.

Set	Clips (channels 1–4)	Spare	A1 / A2	A3 / A4	A5 (FX)	A6 (Cue)
Warmup	Halo, Breath, Sunrise, Horizon	Drift	Lift Up / Width Close	Move Spin / Move Freeze	FX Swell	Cue Groove Four Floor
Groove	Four Floor, Tresillo, Clave, Offbeat	Shuffle	Move Spin / Speed Half	Speed Double / Move Freeze	FX Punch	Cue Build Riser
Build	Riser, Pulse, Loop, Gallop	Vortex	Width Open / Width Close	Speed Double / Speed Half	FX Riser	Cue Peak Anthem
Peak	Anthem, Festival, Carousel, Star	Euphoria	Width Full / Lift Ear Level	Move Spin Fast / Move Unwind	FX Impact	Cue Drop Impact
Drop	Impact, Warehouse, Strobe, Whirlwind	Ping Pong	Speed Stutter / Speed Halt	Width Full / Width Point	FX Punch	Cue Break Standstill
Break	Standstill, Collapse, Monolith, Suspend	Heartbeat	Lift Overhead / Move Freeze	Width Open / Width Point	FX Sweep	Cue Build Pulse
Dub	Echo, Pendulum, Tunnel, Kepler	Skank	Dub Spring / Dub Stitch	Dub Bounce Back / Dub Echo Throw	FX Sweep	Cue Deep Undertow
Deep	Undertow, Sub, Fog, Lurk	Cellar	Lift Sway / Lift Floor	Move Rock / Lift Down	FX Resonate	Cue Float Aurora
Float	Aurora, Canopy, Blossom, Lullaby	Cloud	Lift Overhead / Width Breathe	Lift Sway / Move Unwind	FX Swell	Cue Closing Sunset
Closing	Sunset, Farewell, Tide, Ember	Still	Lift Up / Lift Down	Width Open / Speed Tape Stop	FX Swell	Cue Warmup Halo
Tribal	Gallop, Ping Pong, Clave, Zigzag	Echo	Move Stomp / Move Call	Width Drum Roll / Speed Double Gallop	FX Thunder	Cue Tension Siren
Tension	Siren, Vortex, Helix, Riser	Collapse	Move Siren / Lift Climb	Speed Accelerate / Width Tighten	FX Filter Rise	Cue Drop Impact
Acid	Loop, Infinity, Epicycle, Pulse	Hypocycle	Move Squeeze Sweep / Width Inhale	Move Phase Drift / Speed Double Twist	FX Resonance Climb	Cue Dub Echo
Ambient	Drift, Wave, Breath, Kepler	Ellipse	Lift Cloud / Move Wind	Width Fog / Speed Slow Tide	FX Rain	Cue Float Aurora

The buttons sit the same way in every set:

	left	right
A1 / A2	gentle more	gentle less
A3 / A4	strong more	strong less
A5 / A6	FX (3d, filter)	Cue into the next phase

More: towards energy and openness; less: towards calm and weight. Mood sets use A1–A4 for gestures of their own mood. Each script’s Mood: line says which.

The four mood sets

Set	Character	Sits after	A6 cues
Tribal	percussive, low, call and answer	Groove	Tension Siren
Tension	circling, rising, faster	Tribal or Build	Drop Impact
Acid	one figure turning slowly, resonant	Break	Dub Echo
Ambient	overhead, slow, wide	Deep	Float Aurora

Across a night

• Main line: Warmup → Groove → Build → Peak → Drop → Break → Build again.

• Side road: Dub → Deep → Float → Closing → Warmup.

• Mood sets: Tribal → Tension → Drop; Acid → Dub; Ambient → Float. Enter them by loading the set.

• Onto the side road: load Dub or Deep, or put a spare Cue on a button: Cue Dub Echo (dub escape) or Cue Closing Still (emergency calm).

How a Cue plays:

• It acts on its own channel only: walk the room into the next phase one channel at a time. For all four, load the next set.

• The clip loads and starts on the next downbeat (SHIFT + Cue: now) and stays: no accent, nothing comes back.

• Recording on that channel: nothing happens. Take unsaved: -- SAVE THE TAKE FIRST. Clip deleted or renamed: -- NO SUCH CLIP.

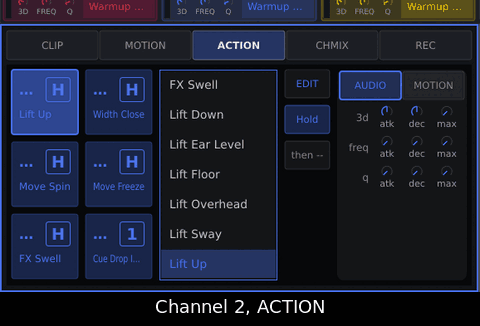

• A Cue can name any clip, your takes too (Scripting actions).

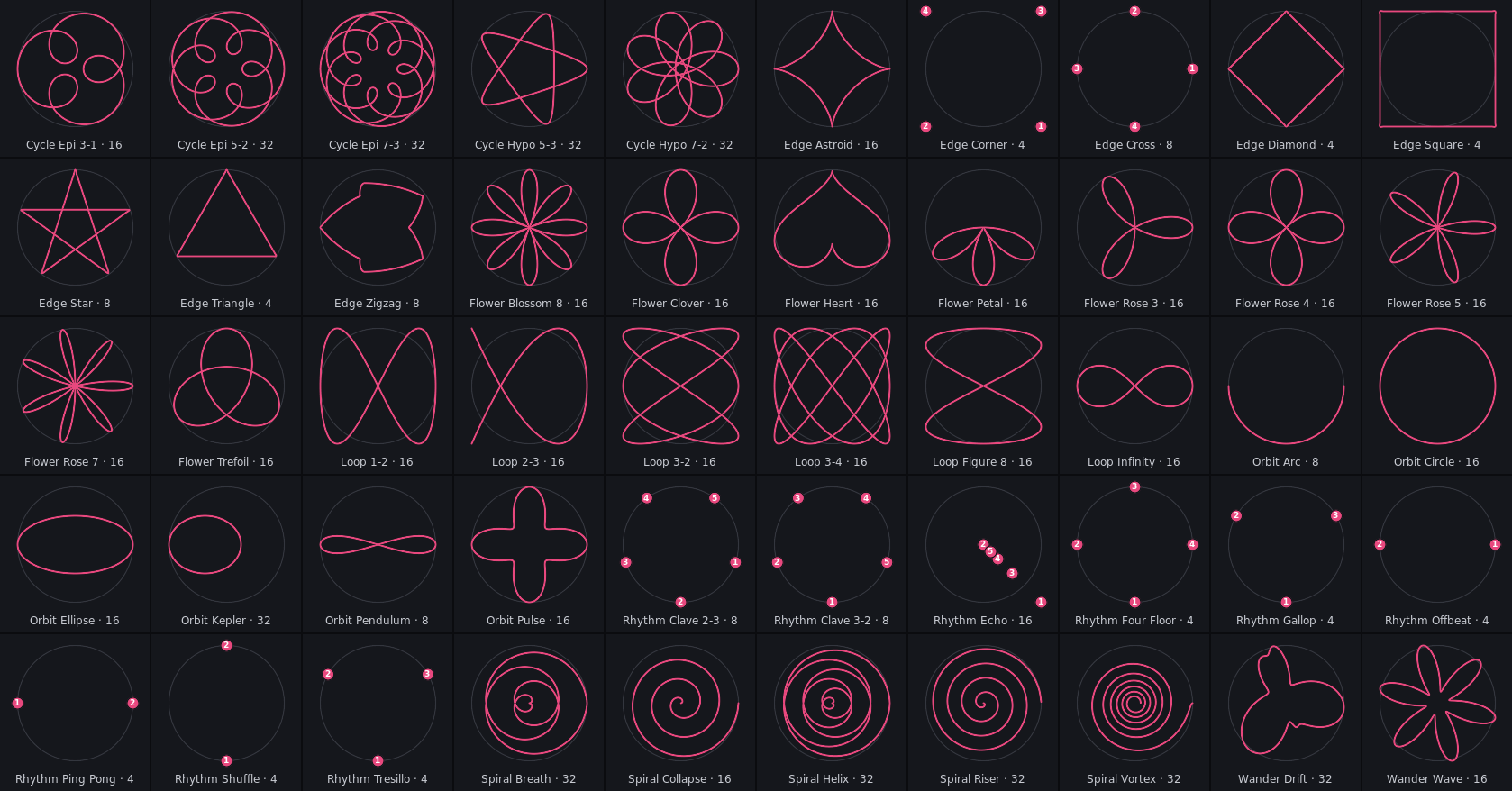

Shapes (50)

A shape is the path only; the clip adds speed, height and width. File names start with the length in beats (04_Rhythm_Four_Floor.svg = one bar), shown in brackets:

Family	Shapes	Idea
Rhythm (9)	Four Floor (4), Offbeat (4), Tresillo (4), Ping Pong (4), Shuffle (4), Gallop (4), Clave 3-2 (8), Clave 2-3 (8), Echo (16)	positions that jump on the beat grid
Orbit (6)	Arc (8), Pendulum (8), Circle (16), Ellipse (16), Pulse (16), Kepler (32)	round the listener, or swinging
Loop (6)	Figure 8, Infinity, 1-2, 2-3, 3-2, 3-4 (all 16)	Lissajous loops: two tempos crossing
Spiral (5)	Collapse (16), Riser, Vortex, Helix, Breath (32)	out of the middle or into it
Flower (9)	Rose 3, Rose 4, Rose 5, Rose 7, Clover, Petal, Heart, Trefoil, Blossom 8 (all 16)	petals: smooth and open
Cycle (5)	Epi 3-1 (16), Epi 5-2, Epi 7-3, Hypo 5-3, Hypo 7-2 (32)	gears: loops inside a turn
Edge (8)	Square, Triangle, Diamond, Corner (4), Star, Zigzag, Cross (8), Astroid (16)	angular, tense
Wander (2)	Wave (16), Drift (32)	organic, no fixed shape

Rhythm shapes are points: the sound jumps on the sixteenths of the rhythm.

Shape	Rhythm
Four Floor	every beat: front, right, back, left
Offbeat	off-beat eighths, two points
Tresillo	3+3+2 sixteenths
Clave 3-2, 2-3	son clave over two bars
Ping Pong	left, right
Shuffle	swung eighths, two points
Gallop	x.xx every beat, three points
Echo	throws that halve, like delay repeats

Clips (70), by phase

A clip is a shape plus speed, height, width, spin and accent. Five per phase: four for the set, one spare. Each clip says what it is for in its own file (mood); this table is written from the files.

Phase	Clip	Shape	Mood
Warmup	Halo	Orbit Circle	a slow halo overhead, gently breathing
	Breath	Spiral Breath	one long breath above the room
	Sunrise	Flower Rose 7	a wide flower rising and sinking overhead
	Horizon	Loop Infinity	a figure eight held level at ear height
	Drift (spare)	Wander Drift	drifting high and open, no hurry
Groove	Four Floor	Rhythm Four Floor	a jump on every beat, at ear height
	Tresillo	Rhythm Tresillo	jumps on 3+3+2, turning slowly
	Clave	Rhythm Clave 3-2	the 3-2 clave, jumps that answer
	Offbeat	Rhythm Offbeat	jumps between the beats, wide
	Shuffle (spare)	Rhythm Shuffle	a swung jump, turning
Build	Riser	Spiral Riser	a spiral climbing as it opens
	Pulse	Orbit Pulse	a circle that swells faster and faster
	Loop	Loop 3-4	a fast loop, lifting
	Gallop	Rhythm Gallop	galloping jumps that pick up pace
	Vortex (spare)	Spiral Vortex	a wide vortex, the whole room turning
Peak	Anthem	Flower Rose 5	a big flower overhead, swelling
	Festival	Loop 2-3	a fast loop over the crowd, swaying
	Carousel	Cycle Epi 7-3	a carousel turning high and fast
	Star	Edge Star	a star thrown wide overhead
	Euphoria (spare)	Flower Trefoil	a lifted trefoil, swelling on the bar
Drop	Impact	Edge Astroid	hard corners slamming round the room
	Warehouse	Edge Square	a square that bounces back and forth
	Strobe	Edge Corner	corner to corner, fast as a strobe
	Whirlwind	Cycle Epi 3-1	a whirlwind, the fastest turn there is
	Ping Pong (spare)	Rhythm Ping Pong	left, right, left, wide on the beat
Break	Standstill	Orbit Arc	an arc that nearly stops, close
	Collapse	Spiral Collapse	a spiral drawing in
	Monolith	Edge Diamond	a small diamond, slow and heavy
	Suspend	Loop Figure 8	a slow figure eight hanging overhead
	Heartbeat (spare)	Flower Heart	a heart shape beating close
Dub	Echo	Rhythm Echo	a throw and its echo, wide
	Pendulum	Orbit Pendulum	a pendulum swinging near and far
	Tunnel	Spiral Helix	a low helix, deep like a tunnel
	Kepler	Orbit Kepler	an orbit slow far out, fast close in
	Skank (spare)	Rhythm Offbeat	the offbeat, fading in and out of the room
Deep	Undertow	Spiral Collapse	a spiral pulling down and in
	Sub	Orbit Circle	a small circle on the floor, shrinking
	Fog	Wander Drift	low drifting, fading at the edges
	Lurk	Wander Wave	a slow wave close to the floor
	Cellar (spare)	Cycle Hypo 5-3	a stretched cycle down low
Float	Aurora	Loop 1-2	a loop overhead, breathing like light
	Canopy	Cycle Hypo 7-2	a canopy straight overhead, wide
	Blossom	Flower Petal	petals opening above the room
	Lullaby	Loop Figure 8	a very slow figure eight overhead
	Cloud (spare)	Flower Clover	a slow clover drifting high
Closing	Sunset	Flower Rose 4	a flower sinking towards ear height
	Farewell	Spiral Collapse	a slow spiral drawing in
	Tide	Wander Wave	a wave coming in and going out
	Ember	Orbit Ellipse	a small slow ellipse, low and warm
	Still (spare)	Orbit Circle	a small circle at ear height, almost still
Tribal	Gallop	Rhythm Gallop	galloping jumps, low and turning
	Ping Pong	Rhythm Ping Pong	left, right, turning against the beat
	Clave	Rhythm Clave 2-3	the 2-3 clave, swaying up and down
	Zigzag	Edge Zigzag	a zigzag across the floor, beat by beat
	Echo (spare)	Rhythm Echo	a call and its echo
Tension	Siren	Orbit Circle	a circle turning like a siren
	Vortex	Spiral Vortex	a fast vortex, swaying down
	Helix	Spiral Helix	a helix winding round the room
	Riser	Spiral Riser	a spiral rising, swelling
	Collapse (spare)	Spiral Collapse	a spiral closing in
Acid	Loop	Loop 3-4	one loop, turning a little every lap
	Infinity	Loop Infinity	a figure eight that keeps turning
	Epicycle	Cycle Epi 3-1	a slow epicycle, swelling on the bar
	Pulse	Orbit Pulse	a tight circle, close and insistent
	Hypocycle (spare)	Cycle Hypo 5-3	a hypocycle tracing its rosette
Ambient	Drift	Wander Drift	a very slow drift high overhead
	Wave	Wander Wave	a slow wave that swells wide
	Breath	Spiral Breath	a slow breath, turning
	Kepler	Orbit Kepler	an orbit near and far, unhurried
	Ellipse (spare)	Orbit Ellipse	a calm ellipse round the room
Space	Anchor	Wander Drift	a small drift that stays near home
	Orbit	Orbit Circle	a small circle just below ear height
	Pendulum	Orbit Pendulum	a slow swing from side to side
	Corners	Edge Square	a slow square, visiting each corner
	Lift (spare)	Orbit Ellipse	an ellipse that sways up and down

Default (no shape) is the fallback for a channel without a clip.

The FPV Games set

A set for trying the pilots’ games. Every channel plays a groove clip (Four Floor, Tresillo, Clave, Offbeat) with the same six actions:

Button	Action	What it does in FPV
A1	Pilot Fake-out	the ship heads for the nearest group, veers off a bar before the drop, hits it on the one
A2	Pilot Formation	every free ship lines up during the build and bursts outward on the one
A3	Pilot Hide and Seek	the ship slips away to one side and reappears opposite on the next one
A4	Pilot Call and Response	this ship and the nearest free one answer each other across the room, a bar each
A5	FX Riser	four bars of build: spread, spin, filter
A6	FX Impact	the drop: everything at once, then a long fall

Put a group or two on the floor, put the channels in ORBIT, and set PILOTS to HINT: the pad that fits the music pulses. In FULL the four Pilot actions do nothing; the riser and the impact work in both views.

Actions (81)

Hold: acts while held. 1shot: fires and lets go. FX actions always change the sound; the others mostly move it.

Move — turns, direction, stillness:

Action	Does	Mood	Mode
Move Spin	turns once every two bars	more, Q1	Hold
Move Spin Fast	a turn every half bar	more, Q1	Hold
Move Unwind	the turn runs the other way, slowly	less, Q4	Hold
Move Reverse	runs backwards	less	Hold
Move Bounce	bounces at its ends from here on	more, Q1	1shot
Move Freeze	everything holds still at one height	less, Q3/Q4	Hold
Move Tilt	leans forward and rocks	more, Q1/Q2	Hold
Move Rock	swings up and down the room	more, Q1	Hold
Move Mirror	turned half round and run backwards	less	Hold
Move Stomp	stamps round once a bar and leans to the floor	more, Q1	Hold
Move Call	jumps to the opposite side and answers	dialogue	1shot
Move Squeeze Sweep	is squeezed and the squeeze sweeps	hypnotic, Q2	Hold
Move Phase Drift	slips a quarter turn and starts drifting, at most one turn in eight bars	hypnotic, Q2	1shot
Move Wind	a slow turn with a pull downwards	less, Q3	Hold
Move Siren	circles once a bar, brighter as it goes	more, Q2	Hold

Lift — height:

Action	Does	Mood	Mode
Lift Up	rises a third of the way to the ceiling	more, Q4 → Q1	Hold
Lift Overhead	snaps to the cap above the listener	more, Q1	1shot
Lift Ear Level	a band at ear height: any clip becomes a ring	less, Q4	Hold
Lift Down	sinks below ear height	less, Q3	Hold
Lift Floor	the sound goes under the floor	less, Q3	Hold
Lift Sway	the height sways on the bar	more, Q4 → Q1	Hold
Lift Cloud	rises slowly into the ceiling and drifts there	less, Q3	Hold
Lift Climb	climbs to the ceiling while held	more, Q2	Hold

Width — spread:

Action	Does	Mood	Mode
Width Open	spreads half again as wide	more, Q1	Hold
Width Full	thrown to the whole sphere	more, Q1/Q2	1shot
Width Close	halves its spread	less, Q3/Q4	Hold
Width Point	everything pulls in to one point	less, Q2	Hold
Width Breathe	the spread opens and closes slowly	less, Q4	Hold
Width Squash	pressed flat, springs back when you let go	less, Q2/Q3	Hold
Width Drum Roll	a fast squeeze sweep, front-back against left-right	more, Q1	Hold
Width Inhale	the spread breathes out and in, the filter with it	hypnotic, Q2	Hold
Width Fog	spreads wide and soft	less, Q3	Hold
Width Tighten	narrows to a point and pulses	more, Q2	Hold

Speed — the tempo of the shape:

Action	Does	Mood	Mode
Speed Double	plays twice as fast	more, Q1/Q2	Hold
Speed Half	plays half as fast	less, Q4/Q3	Hold
Speed Stutter	chatters at a sixteenth	more, Q2	Hold
Speed Tape Stop	winds down and stands still	less, Q3	1shot
Speed Halt	everything that moves on its own stops, and the pass ends	less	1shot
Speed Double Gallop	twice as fast, low and rolling	more, Q1	Hold
Speed Double Twist	twice as fast and twisting	more, Q2	Hold
Speed Slow Tide	half as fast, rising and falling like a tide	less, Q3	Hold
Speed Accelerate	four times as fast and turning	more, Q2	Hold

Dub — the dub desk’s moves, played in space instead of on the sound:

Action	Does	Mood	Mode
Dub Echo Throw	the dub throw: reversed, bouncing, gliding out	less, Q3	1shot
Dub Bounce Back	a hard swing out and back	more, Q2	1shot
Dub Reverse Tape	backwards and slower, like a tape turned over	less, Q3	Hold
Dub Spring	a spring-reverb shake: a fast swell, short	more, Q2	1shot
Dub Scatter	somewhere else every time it is put on a button	more	1shot
Dub Stitch	the gaps in a take glide shut	less, Q4	Hold

FX — the dedicated sound actions:

Action	Does	Mood	Mode
FX Punch	depth hits, nothing moves	more, Q2	1shot
FX Sweep	the filter opens over two bars, nothing moves	more	Hold
FX Resonate	the resonance creeps up	more, Q3 → Q2	Hold
FX Riser	four bars of build: spread, spin, filter	more, Q2 → Q1	Hold
FX Impact	the drop: everything at once, then a long fall	more, Q2 → Q1	1shot
FX Swell	depth and filter rise together, gently	more, Q4 → Q1	Hold
FX Thunder	the 3d hits full and the filter goes low and dark	more, Q1	Hold
FX Resonance Climb	the acid line opens: resonance high, cutoff climbing	more, Q2	Hold
FX Rain	a soft wash: some 3d, the cutoff low, a long tail	less, Q3	Hold
FX Filter Rise	the filter opens all the way, slowly, resonance high	more, Q2	Hold

Cue — loads a clip, starts it on the next downbeat:

Action	Loads	On A6 of
Cue Groove Four Floor	Groove Four Floor	Warmup
Cue Build Riser	Build Riser	Groove
Cue Peak Anthem	Peak Anthem	Build
Cue Drop Impact	Drop Impact	Peak
Cue Break Standstill	Break Standstill	Drop
Cue Build Pulse	Build Pulse	Break
Cue Deep Undertow	Deep Undertow	Dub
Cue Float Aurora	Float Aurora	Deep
Cue Closing Sunset	Closing Sunset	Float
Cue Warmup Halo	Warmup Halo	Closing
Cue Dub Echo	Dub Echo	— the dub escape
Cue Closing Still	Closing Still	— the emergency calm
Cue Tension Siren	Tension Siren	Tribal

Pilot — start a game in FPV (FULL ignores them):

Action	Does	Fits
Pilot Fake-out	heads for the nearest group, veers off before the drop, hits it on the one	a build
Pilot Formation	every free ship lines up, then bursts outward on the one	a build
Pilot Hide and Seek	slips away to one side, comes back opposite	a breakdown
Pilot Call and Response	this ship and the nearest free one answer each other, a bar each	a groove

README in the ACTIONS list is the scripting manual, not an action.

Under the hood

Scripting actions

The FILES editor edits sets and clips (JSON), shapes (SVG) and actions (scripts). README in ACTIONS is the language manual.

• ACTION writes one line per control (~spin = 3;, ~envelopeMax = 0.5;, ~then = 3;); comments and other lines stay. A commented line is switched on, a missing one added, rrand becomes the turned number. Two taps comment it out again.

• The editor follows the knob, even while you type.

• Written about 0.3 s after the hand stops, and before a load, save, rename or delete.

• A Cue is one line, ~clip = "Peak Anthem";. Save as, change the name, Save.

• Shipped scripts carry a Mood: line and a reason.

A³ Motion and the rest of the system

All OSC; messages in the OSC reference. Hosts, ports and addresses come from a3-osc.json (another Core).

What	How
positions	azimuth and elevation to Core while a blob moves; asked back at start-up
3d	crossfades the channel between its stereo and multichannel encoder in Core; freq and Q are its filter
CHMIX, MIXER	the A³ Mixer’s messages; Core relays what REAPER reports
meters, lightning	levels from Core: four channels, sub, four speakers
clock	INT sends /beat; EXT follows the analyser’s /beat; taps send /tap always
SHIFT + action	plays with messages to Core held back

The squeeze, in numbers

sqzX (front–back) and sqzY (left–right) are bipolar around 0 and multiply their axis by 2^value. The squeeze comes before the turn, so it spins with the shape.

The panel’s electronics

A microcontroller, on USB to the UI computer: A³ Motion hardware.
